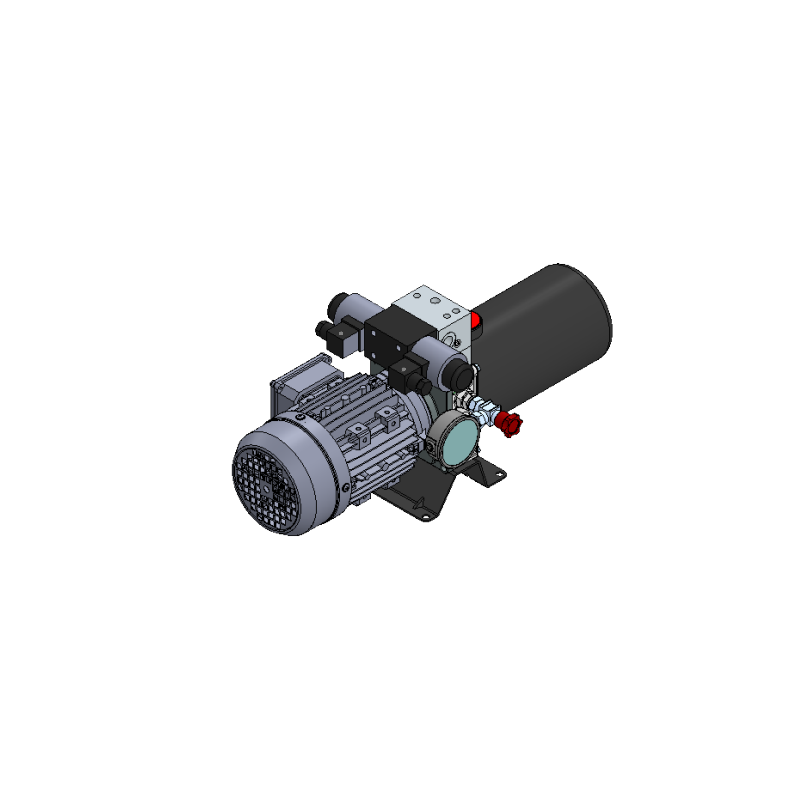

Hydraulic Power Pack 0.5 Cv 3 phases, 1.68 L/min, 110 bar.
- -Electric motor 0.5CV, triphasic 220/380 VAC.
- -Hydraulic pump 1.2 cc/rev (1.68 L/min @ 1390 RPM)
- -Max pressure: 110 bar.
- -Solenoid Valve 4 ways, 3 positions, close centre, 24 VDC.
- -Pressure gauges 0-160 bar general pression.
- -Pressure gauge extruder
- -Rectangular 2.5L tank.
€792.19
Reference:
PHY2302943
Add to wishlist
Related products
-Electric motor 0.5 CV, triphasic 220/380 VAC.
-Hydraulic pump 1.2 cc/rev (1.68 L/min @ 1390 RPM)
-Max pressure: 110bar.
-Solenoid Valve 4 ways 3 posictions, close centre, 24 VDC.
-Pressure gauges 0-160 bar general pression.
-Pressure gauge extruder
-Rectangular 2.5L tank.
Using this hydraulic power unit in conjunction with a hydraulic cylinder with a piston bore of 115 mm and a stroke of 100 mm, the cylinder will complete its stroke in 27.2 seconds.
