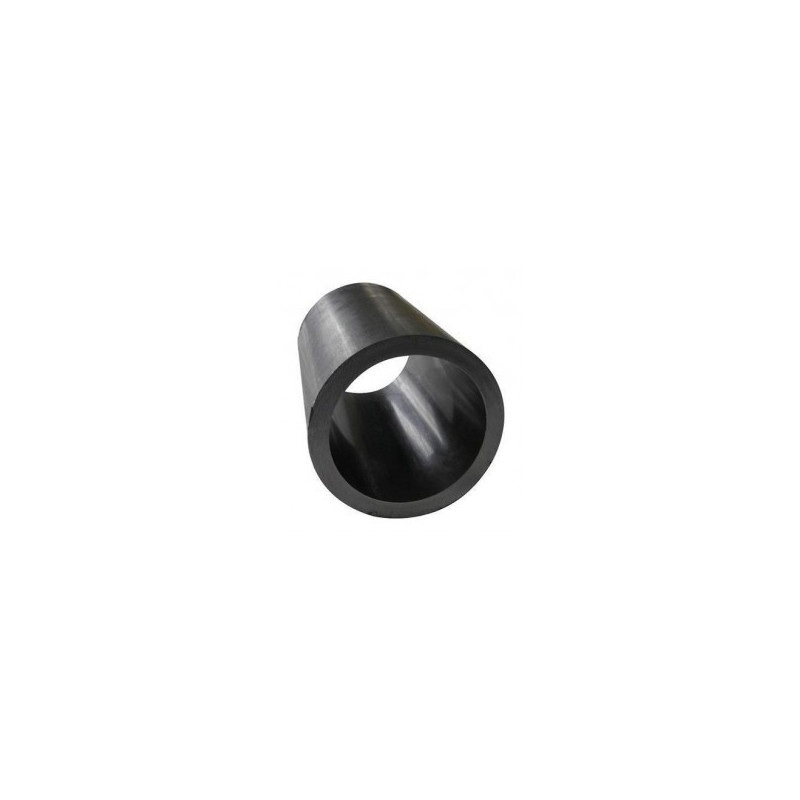

323,9 mm x 280 mm H8 Honed Tube

  • Outside diameter: 323,9 mm
  • Inside diameter: 280 mm.
  • Inner Tolerance: H8.
  • Wall thickness: 21.95 mm.
  • Weight: 262.28 Kg/m.
Read more
€1,208.80 (tax excl.)
(€12.09 cm)
price €604.40
price €604.40 (tax excl.)
price €719.79 (tax incl.)
El precio mostrado arriba incluye un 10% de cargo por corte.
Fuera de stock
Ordering not whole number of meters is allowed.
Availability date: 2019-05-15
Reference:
TL3239280H8
Add to wishlist
Related products
No items
Description

Honed Tube Ø323,9 mm x Ø280 mm H8 Tolerance

  • Outside diameter: 323,9 mm
  • Inside diameter: 280 mm.
  • Steel Grade: E355+SR (EN10305-1).
  • ID Tolerance: ISO H8.
  • OD Tolerance: EN10305-1.
  • Thickness tolerance: ±7.5%.
  • Inside surface roughness: 0.25 µm.
  • Straightness: 1 mm / 1000 mm.
  • Breaking load:  600 N / mm².
  • Yield strength:  520 N / mm².
  • Minimum elongation: 14 %.
  • Wall thickness: 21.95 mm.
  • Weight: 262.28 Kg/m.
  • Cold drawn.



This honed tube is ideal for hydraulic cylinders.

Return and refund policy

Being a standard product, the user will have 15 calendar days from receipt to exercise his right to return the product as long as it is returned in its original packaging, without having been used, damaged or modified.

In case of return of the product, the user will cover the shipping and return costs. The refund only includes the total amount of the product including VAT.

Products that have been cut to length, custom made and/or imported exclusively for the customer, will not be returned and/or refunded unless it is a manufacturing failure. It does not matter if the delivery time suffers delays of any kind.

Read more
Product Details
TL3239280H8

Data sheet

Peso
163.95 Kg/m
Diámetro interior
280 mm
Diámetro exterior
323.9 mm
Tolerancia
H8
