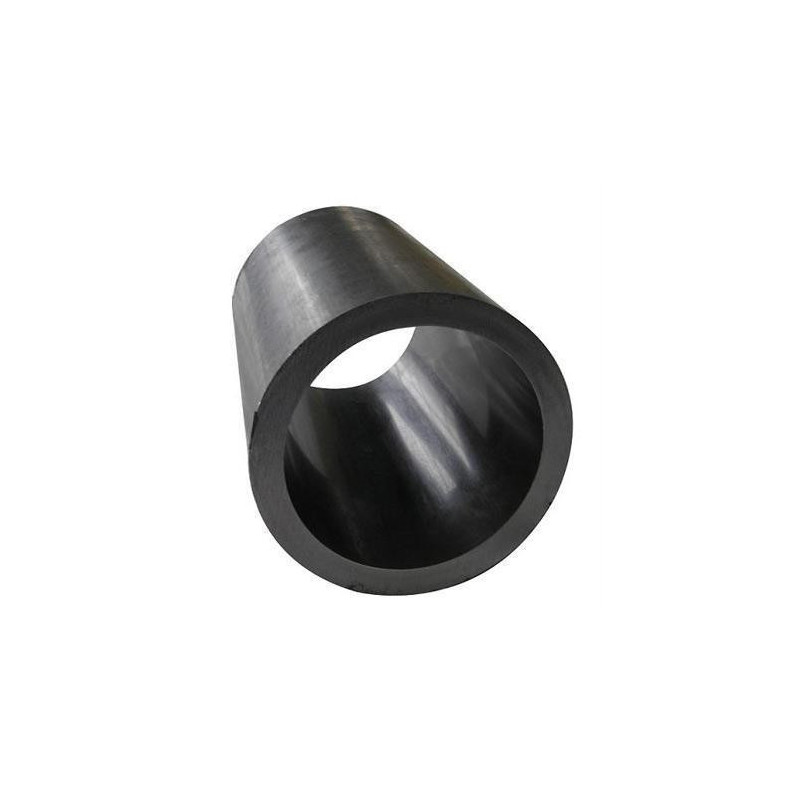

Cylinder tube Ø160 mm x Ø135 mm H8
- Interior Diameter:135.0 mm
- Otside Diameter:160.0 mm
- Steel Grade: E355+SR (EN10305-1).
- ID Tolerance: ISO H8.
- OD Tolerance: EN10305-1.
- Thickness tolerance: ±7.5%.
- Inside surface roughness: 0.25 µm.
- Straightness: 1 mm / 1000 mm.
- Breaking load: 600 N / mm².
- Yield strength: 520 N / mm².
- Minimum elongation: 14 %.
- Wall Thickness:12.5 mm
- Weight:45.47 Kg/mt.
- Max Pressure: 337 bar.
