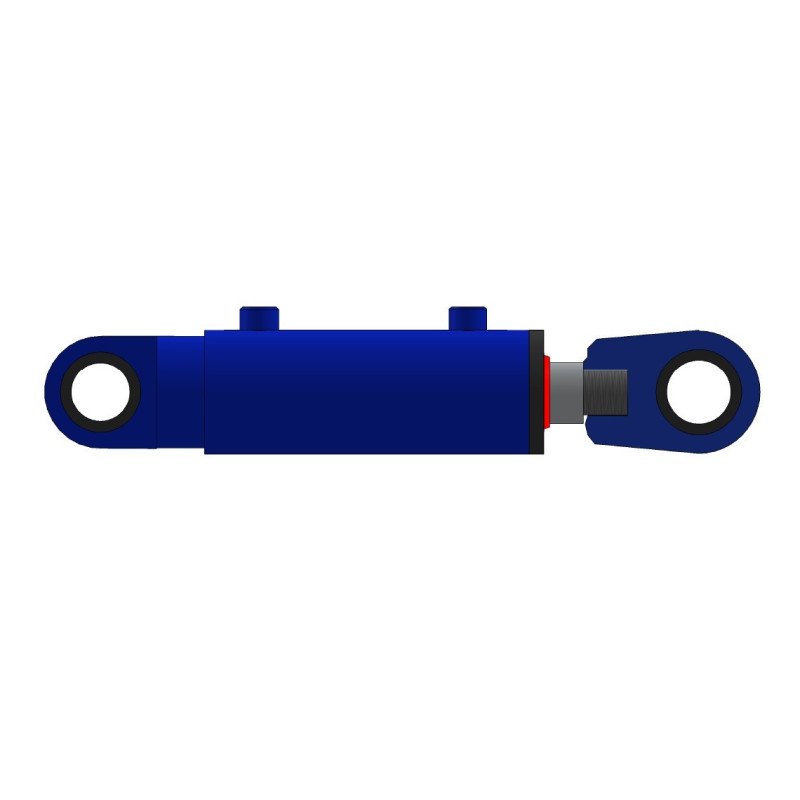

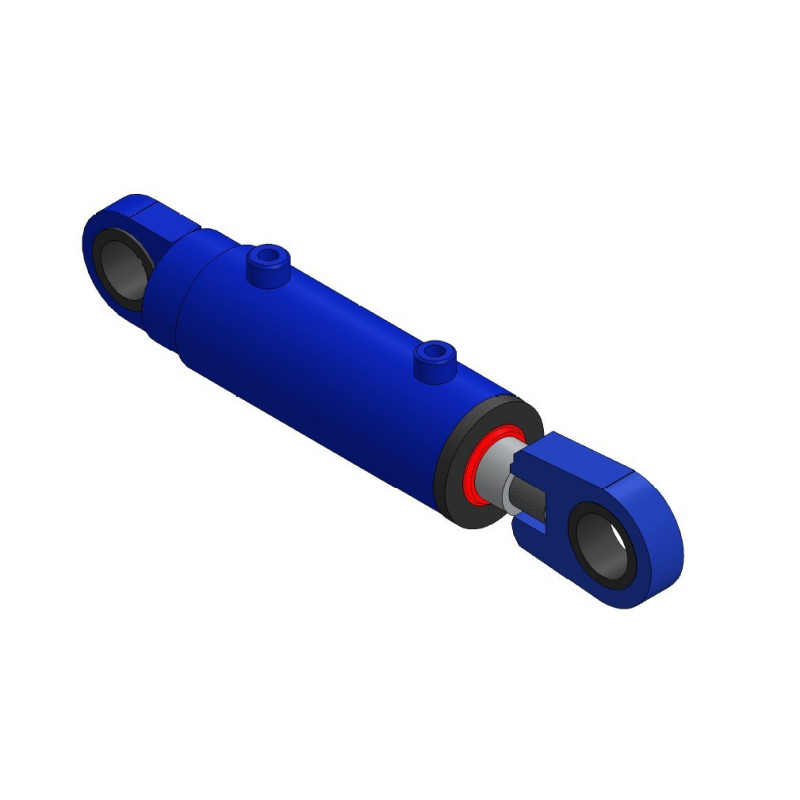

Double Acting Standart Hydraulic Cylinder Series 5

Double Acting Standart Hydraulic Cylinder, diameters from 32 mm to 200 mm

Read more
€218.46
Carrera
Reference:
DE-040.025.1000-RT-RT-X-X-X
Add to wishlist
Related products
No items
Description



                                                                                           SERIE 5

width=

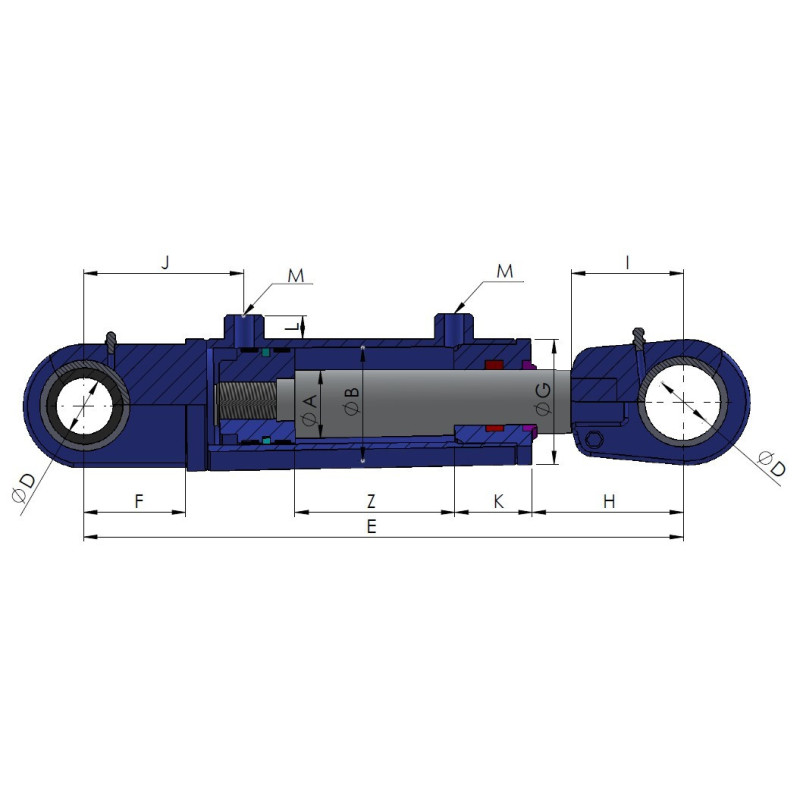

Z

                    M
REF. ØA ØB Stroke E C D F G H I J K L BSP Vol. (L) Seals Weight(kg)
5-20-5 20 32 50 260 19 20 38 40 65 50 63 33 9,5 1/4 0,04 J70N 2,08
5-20-10 100 310 0,08 2,38
5-20-15 150 360 0,12 2,68
5-20-20 200 410 0,16 2,98
5-20-30 300 510 0,24 3,28

5-25-10 25 40 100 305 19 20 38 50 70 50 67 40 15 3/8 0,13 J71N 3,34
5-25-20 200 405 0,25 4,28
5-25-30 300 505 0,38 5,23
5-25-40 400 605 0,5 6,18
5-25-50 500 705 0,63 7,13

5-305-10 30 50 100 320 23 25 45 60 71 50 76 43 15 3/8 0,2 J72N 4,44
5-305-15 150 370 0,29 5,17
5-305-20 200 420 0,39 5,62
5-305-25 250 470 0,49 6,4
5-305-30 300 520 0,59 6,8
5-305-35 350 570 0,69 7,63
5-305-40 400 620 0,79 7,98
5-305-45 450 670 0,89 8,86
5-305-50 500 720 0,98 9,16
5-305-60 600 820 1,18 10,34
5-305-70 700 920 1,37 11,52

5-306-10 30 60 100 340 28 30 51 70 83 60 82 45 15 3/8 0,28 J73N 6,15
5-306-20 200 440 0,57 7,51
5-306-30 300 540 0,85 8,87
5-306-40 400 640 1,13 10,23
5-306-50 500 740 1,41 11,59
5-306-60 600 840 1,7 12,95
5-306-70 700 940 1,98 14,31

5-407-20 40 70 200 470 30 35 61 80 95 70 94 49 15 3/8 0,77 J74N 11,03
5-407-30 300 570 1,15 12,94
5-407-40 400 670 1,54 14,85
5-407-50 500 770 1,92 16,76
5-407-60 600 870 2,31 18,67
5-407-70 700 970 2,69 20,58
5-407-80 800 1070 3,07 22,33

5-408-20 40 80 200 480 30 35 61 90 93 70 94 54 15 3/8 1,01 J75N 12,95
5-408-30 300 580 1,51 14,98
5-408-40 400 680 2,01 17,01
5-408-50 40 80 500 780 30 35 61 90 93 70 94 54 15 3/8 2,51 J75N 19,04
5-408-60 600 880 3,01 21,07
5-408-70 700 980 3,51 23,1

5-50-30 50 100 300 625 35 40 69 115 118 85 104 60 17 1/2 2,36 J76N 26,37
5-50-40 400 725 3,14 29,89
5-50-50 500 825 3,93 33,41
5-50-70 700 1025 5,5 40,45
5-50-90 900 1225 7,07 47,49

5-70-50 70 125 500 920 40 50 88 145 137 105 141 80 20 3/4 6,18 J77 65,7
5-70-100 1000 1420 12,36 97,45
