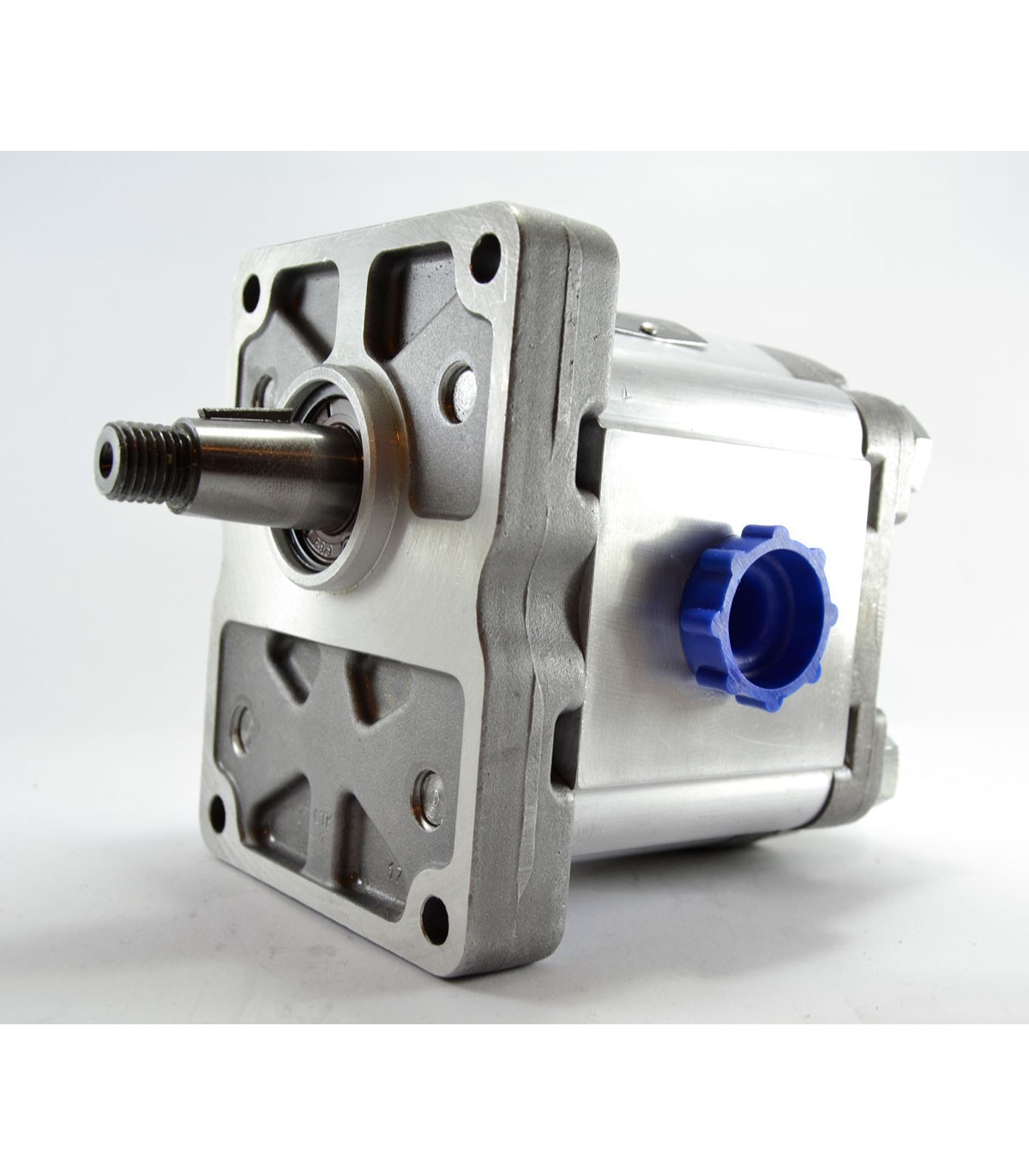

Hyd. Pump, Gp 2, 250 bar 6.75 - 22.5 L/min.

  • Gears Hydraulic Pump
  • Rotation: Right.
  • Shaft: European Tapered 1:8.
  • Mounting: European 4 Holes.
  • Ports: GAS or Flanged
  • Body: Aluminum
Read more
Displacement
Shaft type
Ports Type
Reference:
BE-2P-4.5D-E1ME7G
Add to wishlist(1)
Related products
No items
Description

Hydraulic Gear Pump, from 4,5 to 15 cc/rpm:

  • Displacements: 4,5 to 15 cc/rpm
  • Continuous maximum pressure: 250 bar.
  • Intermittent maximum pressure: 280 bar.
  • Peak pressure: 300 bar.
  • Shaft: conical 1:8 or Straight SAE A.
  • RPM max : 4000.
  • Mounting: Europeaun 4 Holes.
  • Seal: NBR.
  • Body material: Aluminum.
  • Turn: Right.

BE2P4.5 BE2P5.6 BE2P6.3 BE2P8.2 BE2P10 BE2P11.3 BE2P12.5 BE2P14 BE2P15
A (mm) 47,5 49,1 50,2 53,2 56,0 58,0 59,8 62,1 63,7
B (mm) 23,7 24,55 25,1 26,6 28,0 29,0 31,05 21,85 32,6

Maximum revolutions

(min-1)

4000 4000 4000 3500 3500 3500 3500 3500 3500

 Minimum revolutions

(min-1)

700 700 700 700 700 700 700 700 700
Weight (Kg) 2,1 2,1 2,2 2,2 2,3 2,4 2,4 2,6 2,6
