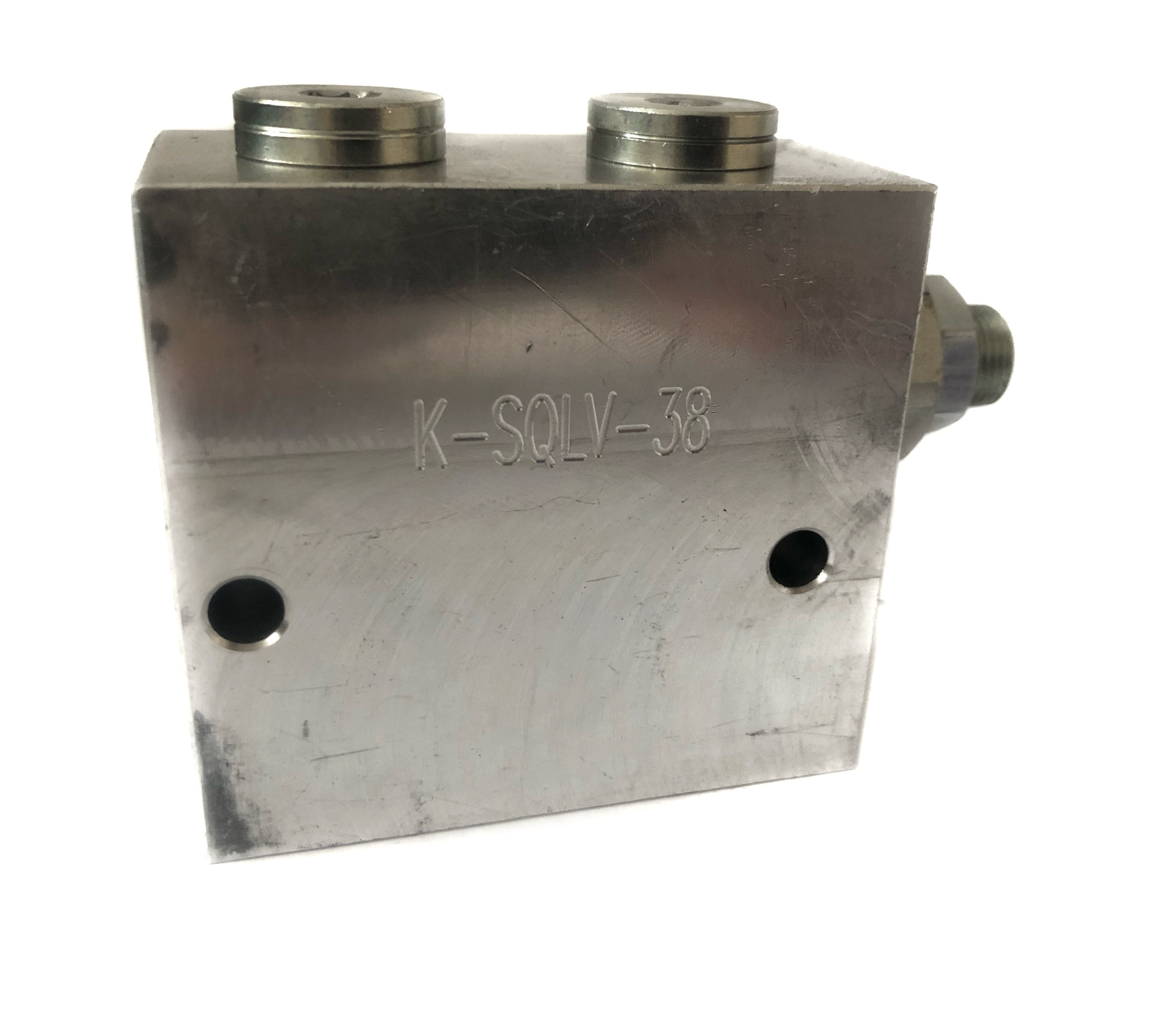

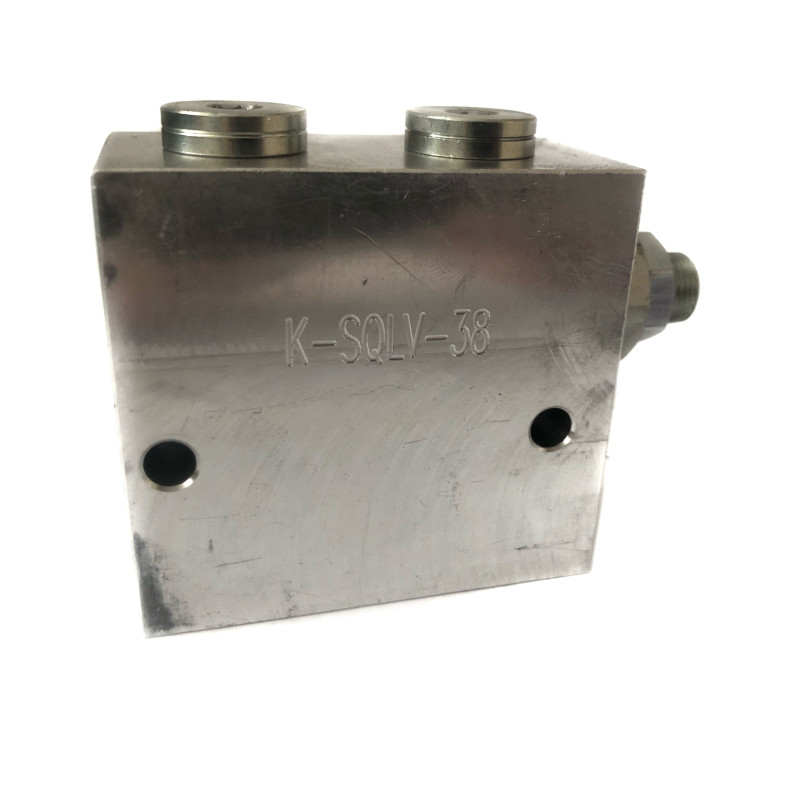

Hydraulic sequence valve.
Max. operating pressure: 260 bar.
Sequence pressure adjustment: 40-210 bar.
Ports: 3/8" BSP.
Max. flow: 35 L/min.
The sequence valve is used to supply a second actuator after the first has finished the cycle reaching a set pressure.
The return is free.
MOUNTING AND OPERATION:
Connect the V1 port to the input line to the first actuator.
Connect the C1 port to the power supply of the second actuator.
When the first actuator reaches the set pressure, the valve opens and allows flow to the second actuator.
The internal check allows free passage in the opposite direction.
Adjustment – Hand knob – Lockwire – Steel cap.
