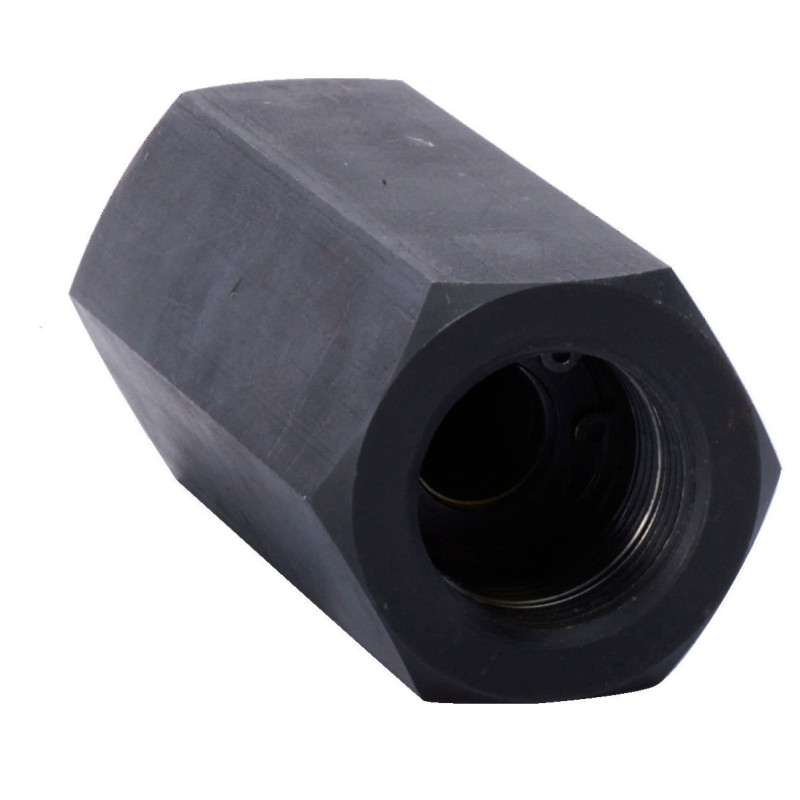

Backstop Valve 3/8" (Check Valve)

Backstop valve 3/8" with BSPT rope (HOF Hydraulic)

This valve allows only one direction of flow preventing the fluid to return. CNT-T03 allows a maximum flow of 25 l/min (6,6 gpm) and a maximum pressure of 210 Bar (3000 psi). I has a 3/8" BSPT port and its dimensions are 70mm x 24 mm. Weights 0,20 kg.

Read more
Reference:
CNT-T03-P-A
Add to wishlist
Related products
Description
The backstop valve 3/8" model has been designed to be highly robust. It allows free flow in one direction, and closes the flow in the opposite direction. The valve specifications are the following:

  • Ports: 3/8" BSPT
  • Maximum flow: 25 lts/min (6,6 GPM)
  • Maximum pressure: 210 bar (3000 psi)

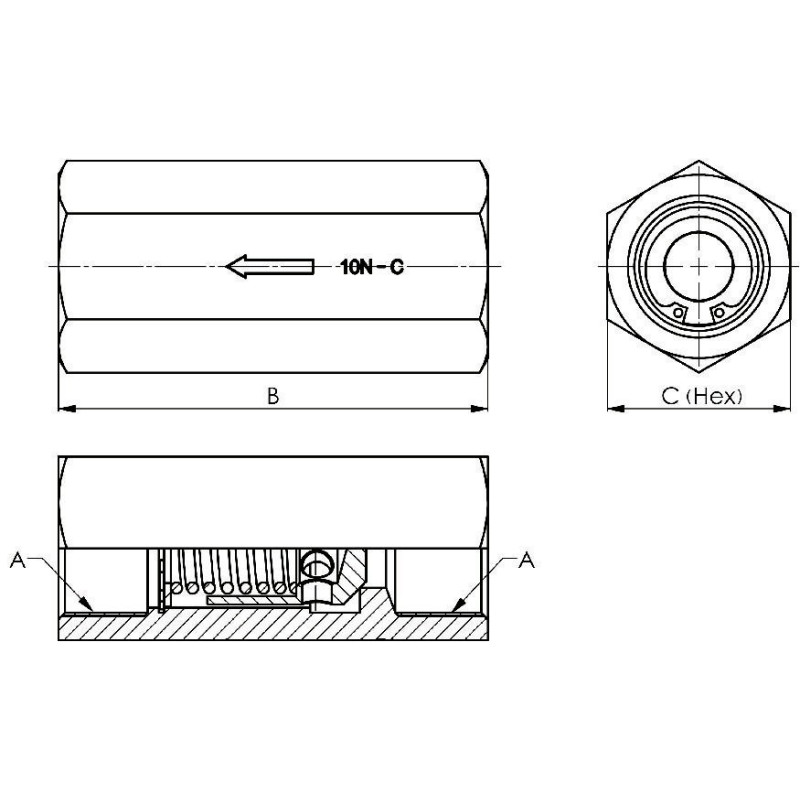

  • Dimensions: 70mm x 24mm
  • Weight: 0,20 Kg
  • Opening pressure: 0,4 bar (5 psi)
  • Trademark: HOF Hydraulic


For further info, we would advise you to download the brochure in the "more information" tab.
