Hydraulic power unit 3 Hp, 9,8 cc/rev, max pressure 70 bar. Single acting cylinder

Hydraulic Power Unit  model PHYZ845375

  • 3 HP Electric motor 220 VAC single phase.
  • Hydrualic pump: 9,8 cc/rev.
  • Max working pressure: 70 bar.
  • Single solenoid directional control valve, 2 ways, 2 position 220 VAC
  • 15 L Tank



Ideal to move a single acting hydraulic cylinder.

Read more
Reference:
PHYZ845375
Add to wishlist
Related products
Description

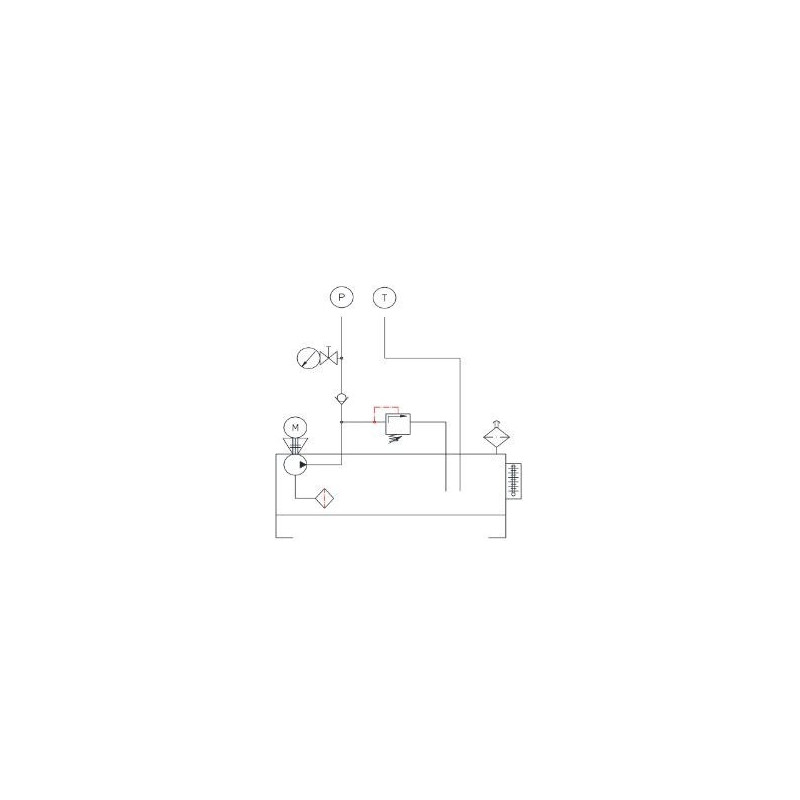

Hydraulic Power Unit 3 HP, 70 bar model PHYZ845375

  • Electric Motor: 3 HP
  • Motor Voltage: 220 V 50Hz single phase
  • Pump Flow: 9,8 cc/rev (Max. Cont. Pressure =130bar)
  • Max Working Pressure: 70 Bar
  • Tank: 15L
  • Mounting: Vertical
  • Parallel NG6 - 3/8" with side output
  • Mounting assembly screws
  • Pressure grauge exclusion needle valve
  • Pressure gauge  0-60 bar ø 63mm with glycerine, vertical assembly
  • Single solenoid directional control valve, 2 ways, 2 position, 220 VAC
