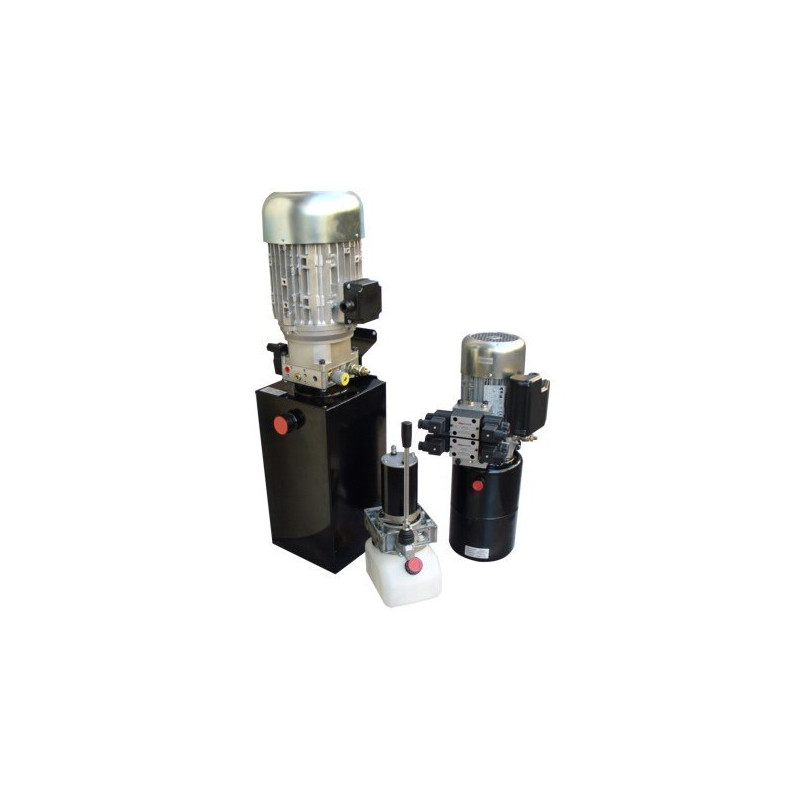

Compact Hydraulic Power Unit 4,2 cc/rev (6 L/min @ 1500 rpm) designed to operate at 90 bar with an electric motor of 1.5 Hp at 220 VAC Single phase, 50 Hz, 5L tank and horizontal mounting.
Compact Hydraulic Power Unit specifications:
This power unit is designed to move a single acting hydraulic cylinder.
- Electric Motor: 1,5HP
- Motor Voltage: 220/380V 50Hz
- Pump Flow: 4,2 cc/rev (Max. Cont. Pressure =180bar)
- Max Working Pressure: 90 Bar
- Tank: 5L
- Mounting: horizontal
- 2 way, 2 position directional control valve, single solenoid 220 VAC @ 50 Hz
- Mounting assembly screws minicentral
- Exclused cranked key
- Pressure gauge 0-160 bar ø 63mm with glycerine,
- Horizontal assembly
