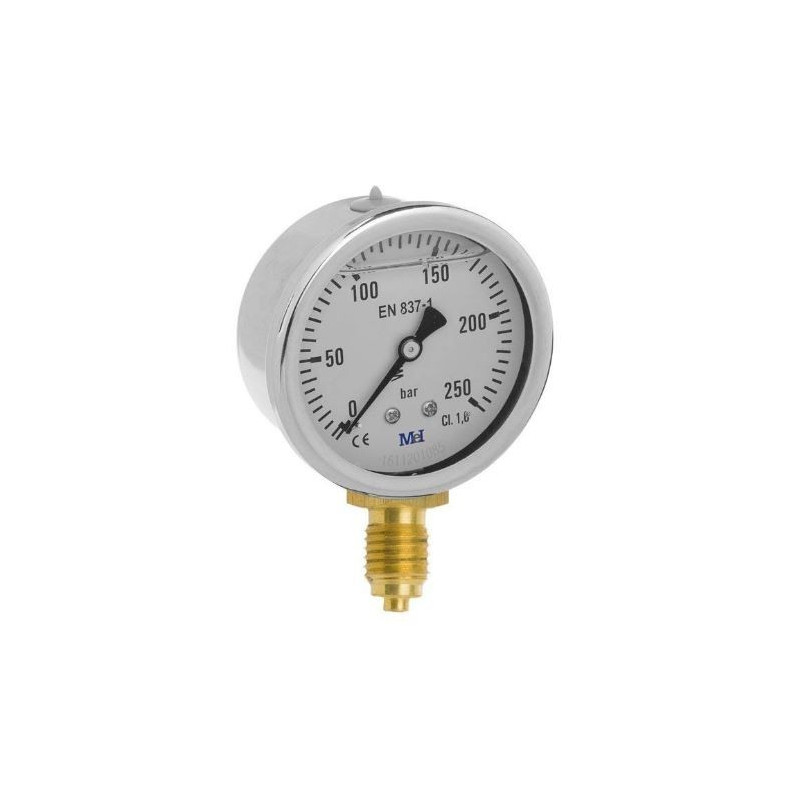

Gauge 0 - 250 BAR filled with Glycerin, 1/4 "BSP Thread Bottom, Sphere 63 mm

Pressure gauges with glycerine and connection 1/4" BSP (vertical) for measuring pressures from 0 to 250 BAR.  Bronze Connection , 63mm (2.5") face. It has one measuring ranges: Bar

Read more
€18.64
Fuera de stock
Reference:
PMAN250-63-025V
Tags:
Add to wishlist
Related products
Description

High pressure gauges

Pressure gauges manufactured under the highest standards of European quality. Our gauges are ideal for use in harsh environments. A measurement system having high efficiency and mark perfectly the pressure in the system at all times.

Technical specifications:

  • Type of conector: 1/4" bronze BSP
  • Pressure Range: 0 - 250 bar.
  • Face diameter: 63 mm (2,5")
  • Contains glycerin: Yes
  • Face material: Stainless steel
  • Measuring scale: BAR



These pressure gauges (manometers) can be used in all types of environments, they are ideal for use in industrial environments and in mobile environments.

Uses:

  1. Hydraulic power units. Measure the pressure in any part of the system:
    1. Before the entry of the oil in the hydraulcis hoses that provide pressure to the hydraulic cylinders.
    2. Before the entry of the oil to a hydraulic motor.
    3. In the return line to the tank
    4. Before and after the filter
    5. etc.
  2. They are ideal for measuring pressure in mobile systems like:
    1. Garbage trucks
    2. Tractors
    3. Container trucks
    4. Trucks with hydraulic crane
    5. Roll-off trucks
    6. etc.



As you can see above our gauges can be used in any application that requires high pressure gauge. They have a high reliability and accuracy of European quality.
